V2 Red Stealth 13500lb 12v winch with synthetic rope
V2 Red Stealth 13500lb 12v winch with synthetic rope

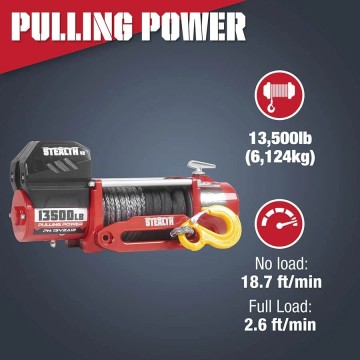

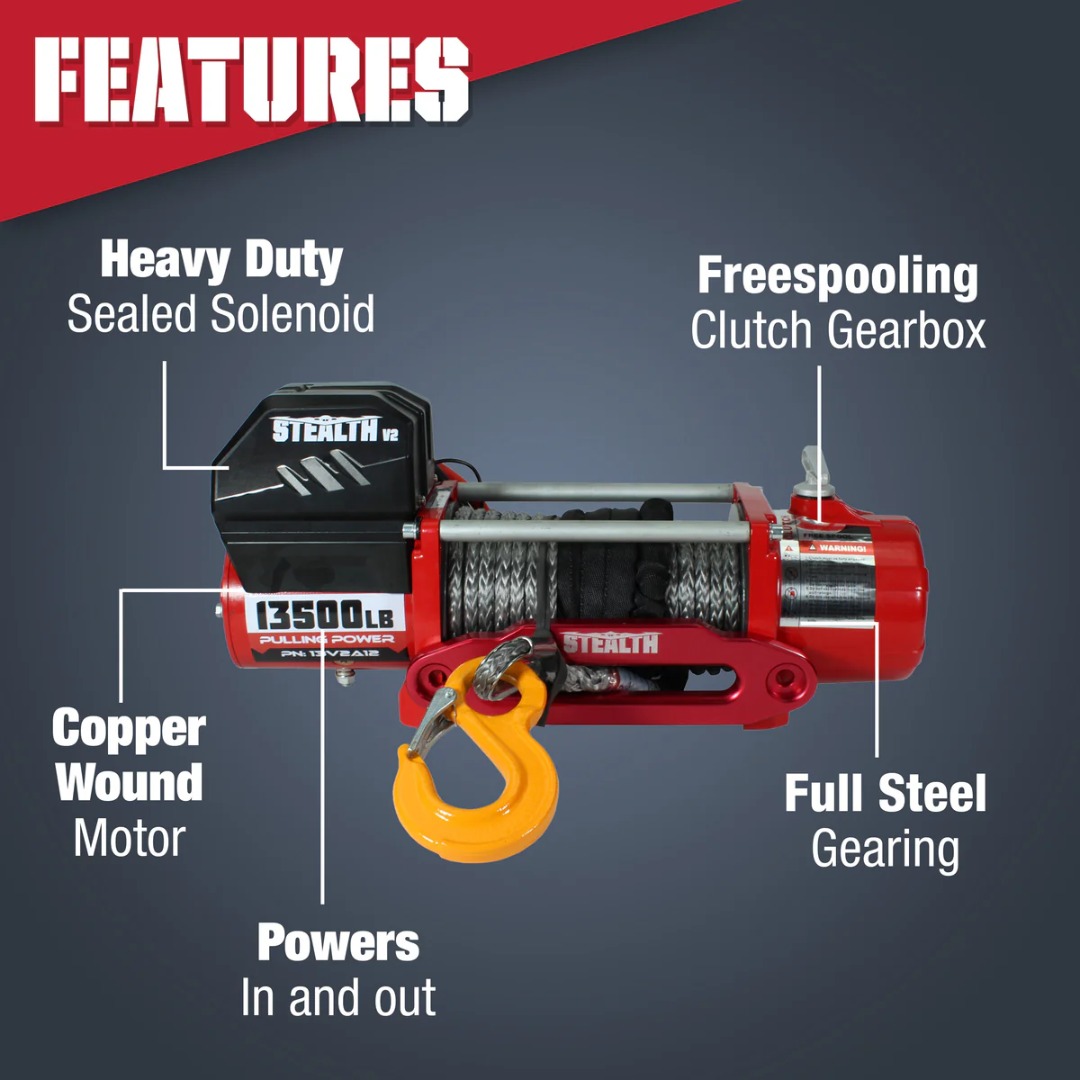

- SUPER STRONG – Incredible pulling power of 13500lb (6000kg)
- WIRELESS CONTROLS – Includes two wireless remote controls.
- HARDWEARING – Built with full steel gearing for durability.
- SYNTHETIC ROPE – Complete with synthetic rope, hook and hawse fairlead.
- HEAVY-DUTY DESIGN – Features a sealed solenoid for long-life.
n an ideal world, every recovery truck and 4x4 would already be fitted with a high-power winch. But as that isn’t always the case – we’re here to help. Extending our offering of excellent budget winches that push the limits of both quality and value, the Stealth V2 levels it up with something more serious.
Still at a budget price, the Stealth V2 has all the strength and durability you’d need in a heavy-duty, industrial winch. Reinforced with a sealed solenoid and full steel gearing, it’s designed for long-life and reliable power to help you get the job done.
With an incredible line capacity of 13500lb and a line pull of 2.6ft per minute at full load – its strength is unbeatable. Beyond the hardwearing design, the Stealth V2 is also benefitted by not one but two wireless remotes for smart working.
| Rated Line Pull | 13 500 lbs (6 123 kgs) |
|---|---|
| Motor | 12v : 6.1hp / 4.6kw 24v : 8.7hp / 6.5kw |
| Gearing | 265:1 |
| Drum Size - Dia x L | 2.4 x 8.8" (63 x 223mm) |
| Cable - Dia x L | Synth: 0.39" x 65.6ft (10mm x 20m) |
| Dimensions | 21.3 x 6.3 x 9.6" (542 x 160 x 245mm) |
| Mounting Pattern | 9.6 x 4.49" (254 x 114 mm) |
| Weight | 61.7 lbs (28 kg) |
| Certification | CE Certified |
| Layer of Rope/Cable | Line Pull: lbs(kgs) | Rope on drum ft(m) |
|---|---|---|
| 1 | 13 500 (6 123) | 16.1 (4.9) |
| 2 | 10 596 (4 806) | 36.4 (11.1) |
| 3 | 8 720 (3 955) | 60.0 (18.3) |
| 4 | 7 408 (3 360) | 65.6 (20.0) |
| Line Pull lbs (kgs) |
Line Speed 12v ft/min (m/min) |
Line Speed 24v ft/min (m/min) |
Amp Draw 12v |
Amp Draw 24v |
|---|---|---|---|---|
| 0 | 19.7 (6.0) | 20.6 (6.3) | 72 | 50 |
| 4000 (1818) | 10.5 (3.2) | 11.5 (3.5) | 180 | 120 |
| 8000 (3629) | 7.5 (2.3) | 8.9 (2.7) | 265 | 180 |
| 12000 (5443) | 5.2 (1.6) | 6.9 (2.1) | 360 | 240 |
| 13500 (6123) | 3.9 (1.2) | 5.2 (1.6) | 390 | 270 |

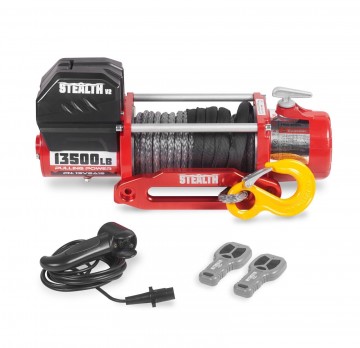

Inhoud.
- Stealth Winch
- 65.6ft Synthetic Rope
- Wired Hand Control: 12.8ft Wired Hand Control
- Wireless Control: Includes Two Wireless Controls*
- Fairlead: Hawse Fairlead
- Mounting Bolts: Included for Standard installations
- Battery Cables (May need extending dependent on application)
- Hand Saver
- Instruction Manual
