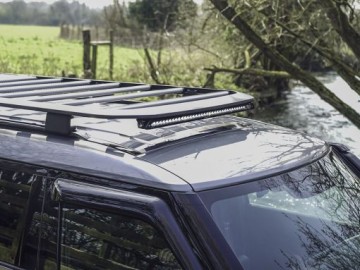

The Defender Expedition Roof Rack Mounting Kit enables mounting of Lazer Lamps’ Linear-36 high performance LED light bar to the underside of the front of the roof rack system for a simple, secure install. Included within the kit are: M8 rivnuts plus fasteners, and ‘Standard’ Linear Side Mount Brackets (supplied anti-theft brackets with the Linear LED lights themselves are not suitable for this type of install).
To complete the install; the Linear-36 and wiring is sold separately. For the wiring, it will be necessary to extend our one-lamp wiring kit (1L-LP-120/220) using our 3m extension cable (8213-2C). With the Linear-36 approved (with double e-mark) to Reg112, there’s the option to connect the lamp directly to the vehicles standard high beams, mindful that where the vehicle has the LED Matrix headlight system as standard, it may not be possible to detect a 12V high beam signal. In these instances it will be necessary to complete the electrical installation using a Lazer CAN Interface.

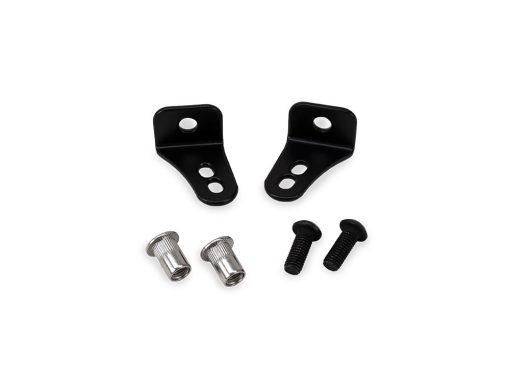

What’s included:
2x Stainless Steel Mounting Bracket (LH/RH) – for Linear
2x M8 Rivnuts
2x M8 Spring Washers
2x M8 Bolts
Specifications:
Technical Specifications
Based on 1x Linear-36
| Voltage Range (DC) |
10-32V |
| LED Life |
50,000 hours |
| Weight |
2.1 kg |
| HIGH BEAM FUNCTION |
|
| Total Luminous Flux |
13500 Lm |
| Total Driver ‘FOV’ Flux † |
9612 Lm |
| Colour Temperature |
5000K |
| Number of High Output LEDs |
36 |
| Power Consumption |
126 Watts |
| Current Draw (at 14.4V) |
8.8 Amps |
| Start-up Time * |
100ms |
| CERTIFICATION |
|
| High Beam |
ECE R112 |
| ECE Reference |
2x 30 |
| DIMENSIONS |
|
| Width |
982 mm |
| Depth |
62 mm |
| Height |
40 mm |

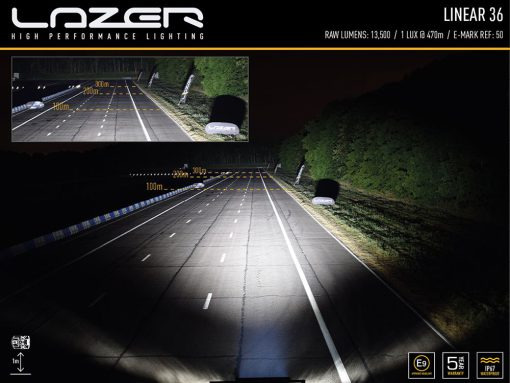

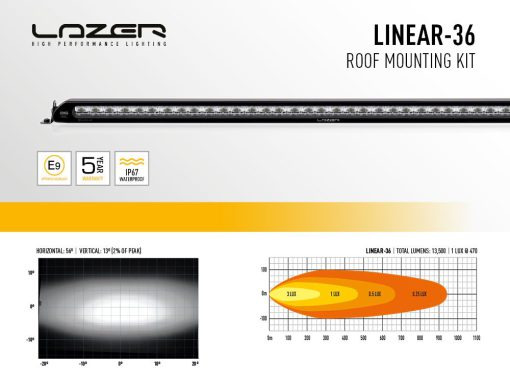

| PHOTOMETRIC DATA |
|
| Horizontal Beam Angle |
34 degrees |
| 0.25 lx Line |
940 metres |
| 0.5 lx Line |
665 metres |
| 1 lx Line |
470 metres |
| 3 lx Line |
271 metres |
|
