Lazer Lights – Isuzu D-Max Roof Kit (with roof rails)

€ 939,95 (inclusief btw 21%)
Levertijd 4 tot 8 werkdagen
Specificaties
Productcode leverancier 3001-DMAX-WRR
Bruto gewicht 3,50 Kg
Omschrijving

Lazer Lights – Isuzu D-Max Roof Kit (with roof rails)

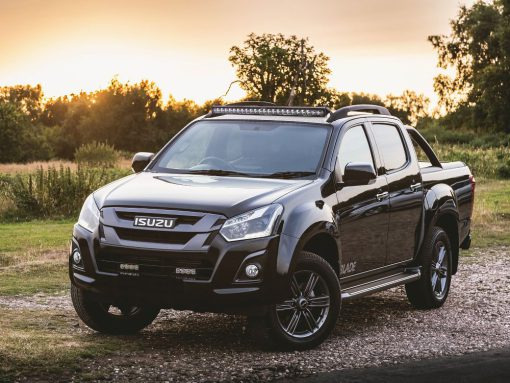

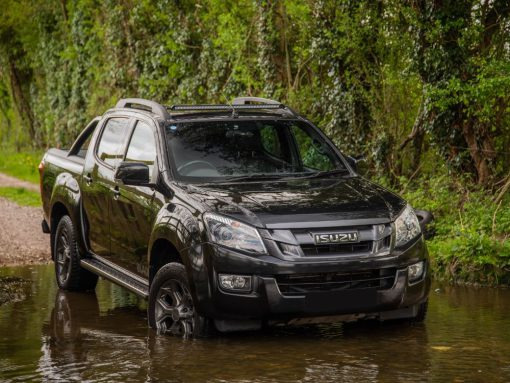

Lazer Lights – Isuzu D-Max (2017+) Roof Kit (with roof rails)

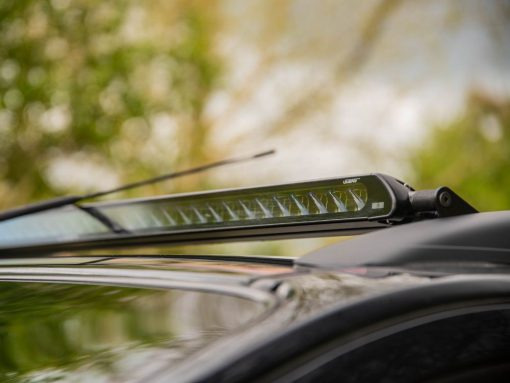

Optimised for the Isuzu D-Max (model years 2017+ or 2021+), the Lazer Lamps Roof Mounting Kit comprises stainless steel brackets that fix to the vehicle’s roof rails for easy fitment of the Linear-36 or T24 Evolution high performance LED spotlights.

With its low-profile aerodynamic housing, smooth lines, and contemporary design features, the Linear-36 is an ECE-approved auxiliary LED spotlight that integrates effortlessly for an understated install, that boasts class-leading lighting performance. The Linear-36 delivers good distance illumination, and left/right spread, that leaves little to the imagination. The low-profile design also benefits from exceptional low wind noise, which can affect many roof light installations when driving at higher speeds. For customers looking to make more of a statement, the T24 Evolution is an off-road LED driving light producing nearly 25,000 lumen with a flood beam pattern for excellent all-round visibility. Both options are designed and engineered to the highest standards, and through our UK manufacturing nothing has been left to chance with the products’ build quality or reliability, backed up by our comprehensive 5 year warranty.

Manufactured from A2 stainless steel, and finished with a UV-stable, satin black powder coat, the mounting brackets are fully corrosion resistant in line with automotive grade quality standards, as are the supplied countersunk anti-theft fasteners, and cylindrical spacers to aid positioning of the lamps. Cable grommets are supplied to ensure a tidy, and sealed cable entry point whether into the roof rail, and/or through the roof into the vehicle’s headlining. Electrical butt connectors are provided to help assure the integrity of the cable reattachment once thread through the roof.

Complete one-stop solution for roof-mounting on Isuzu D-Max (2017+ or 2021+) with Roof Rails

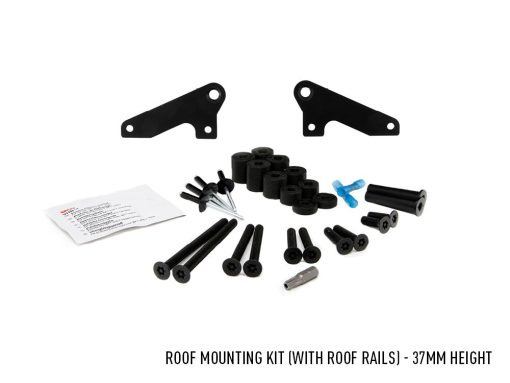

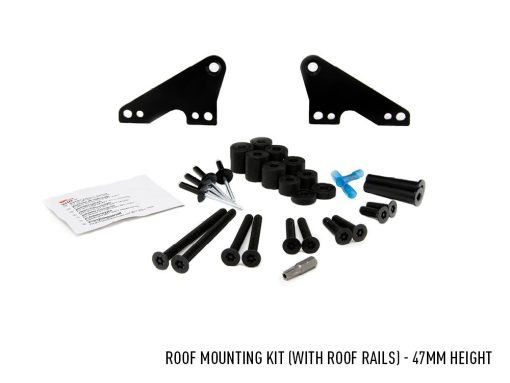

Optimised for Linear-36 (37mm height brackets) or T24 Evolution (47mm height brackets) high performance LED spotlights

Mounting brackets made from 3mm A2 stainless steel

UV-stable, satin black powder coat

Includes assortment of A2 stainless steel, anti-theft fixings with countersunk head

Spacers facilitate positioning of different length LED light bars

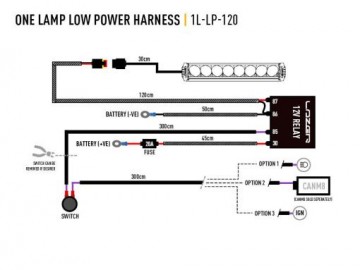

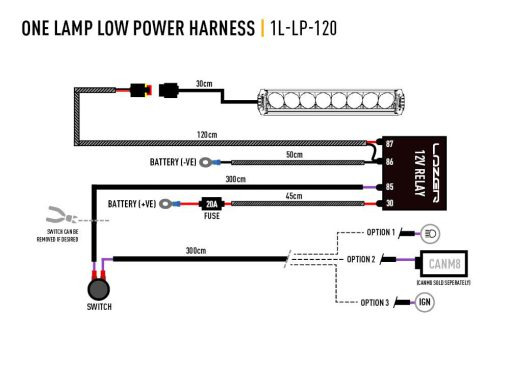

Vehicle wiring kits available (included with T24)

5yr Warranty

Manufactured in the UK

Specifications:

Technical Specifications
  Linear-36 T24 Evolution
Voltage Range 10-32V 10-32V
LED Life 50,000 hours 50,000 hours
Weight 2.7 kg 3.1 kg
HIGH BEAM FUNCTION
Total Luminous Flux 13500 Lm 24816 Lm
Total Driver ‘FOV’ Flux † 9612 Lm 14939 Lm
Colour Temperature 5000k 5000k
Number of High Output LEDs 36 24
Power Consumption 126 Watts 262 Watts
Current Draw (at 14.4V) 8.8 Amps 18.2 Amps
Start-Up Time * 100ms 100ms
CERTIFICATION
High Beam ECE R112 N/A
ECE Reference 50 N/A
DIMENSIONS
Width 982 mm 1004 mm
Depth 62 mm 68 mm
Height 40 mm 64 mm

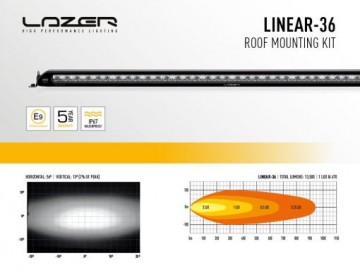

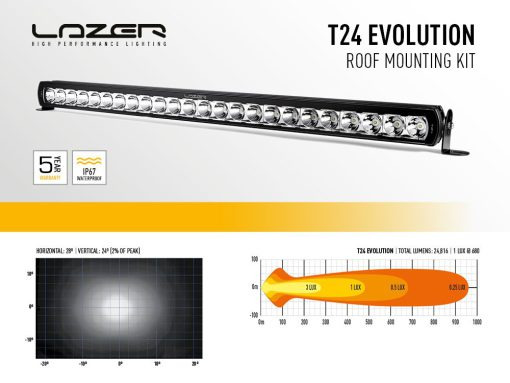

PHOTOMETRIC DATA
Horizontal Beam Angle 25 Deg 28 Deg

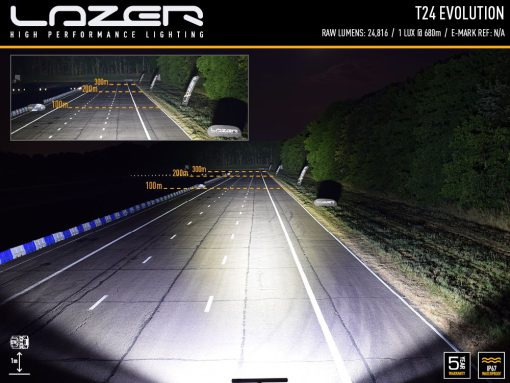

0.25 lx Line 940 metres 1361 metres
0.5 lx Line 665 metres 962 metres
1 lx Line 470 metres 680 metres
3 lx Line 271 metres

393 metres
