For the Isuzu D-Max with Sports Bar, a choice of auxiliary light options fitted to the bar, for a fully road-legal LED lighting upgrade that delivers exceptional levels of night-time visibility, backed up by a comprehensive 5-year warranty.

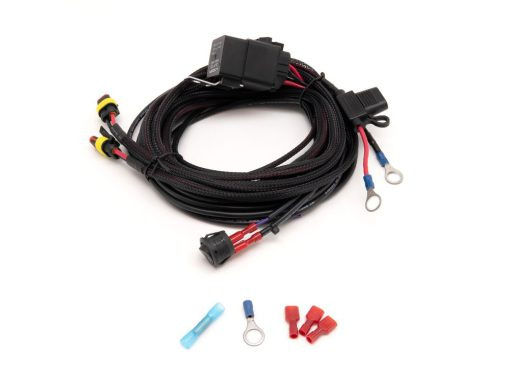

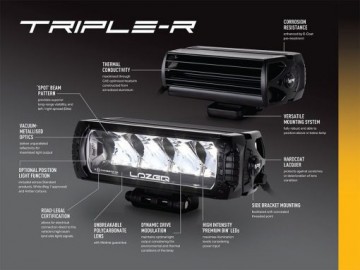

Optimised for the ST8 Evolution, or range of Triple-R 1000 high performance spotlights, the lights mount in pairs on the sports bar using stainless steel 76mm Tube Clamps, which are powder coated satin black for a sleek, stylish finish to your installation. Vehicle wiring kits are also available allowing for connecting your lights either direct to your standard high beams, and/or operated via a separate switch on your dashboard.

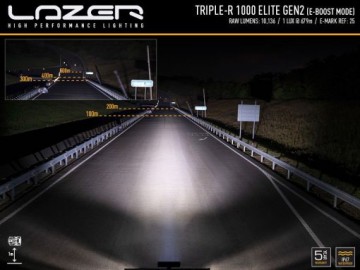

The ST8 Evolution option delivers good distance illumination (1 lux at 555m) but with an all-round spread of light that ensures excellent visibility both left/right and up/down. In this respect, the ST8 is particularly well suited for customers driving in rural or off-road locations. By contrast the Triple-R 1000 (available in Standard or Elite grade) delivers a spot beam with 1 lux reaching 898m or 960m depending the lamp version selected. All options are fully ECE approved for on-road use.
With no compromises in component parts or production techniques, as with all Lazer products, we have taken every step to maximise lighting performance, and build quality, to ensure your lighting installation remains in excellent condition for years to come.
Where the vehicle has Xenon or LED headlights as standard, it may not be possible to detect a 12V high beam signal. In these instances it will be necessary to complete the electrical installation using a Lazer CAN Interface.

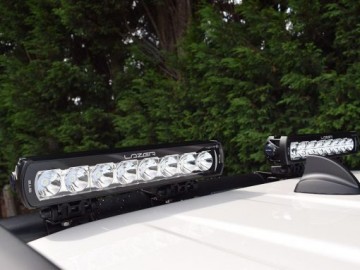

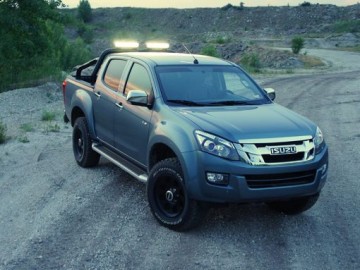

Auxiliary spotlight installation for Isuzu D-Max with Sports Bar
Optimised mounting with pair of ST8 Evolution or Triple-R 1000 spotlights

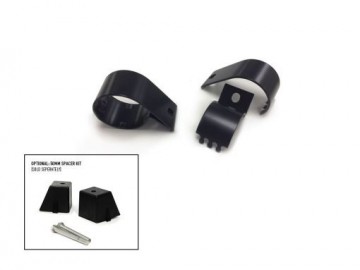

Secured using satin black, stainless steel 76mm Tube Clamps
Vehicle wiring kits available
Fully road-legal
5-year warranty
Made in Britain
Specifications:
Technical Specifications
|
2x Triple-R 1000 Elite (E-Boost Mode) |
2x Triple-R 1000 (E-Boost Mode) |
2x ST8 Evolution |
Voltage Range |
10-32V |
10-32V |
10-32V |
LED Life |
50,000 hrs |
50,000 hrs |
50,000 hrs |
Weight |
3.4 kg |
3.4 kg |
2.3kg |
HIGH BEAM FUNCTION |
|
|
|
Total Luminous Flux |
20272 Lm |
18480 Lm |
16544 Lm |
Total Driver ‘FOV’ Flux † |
13360 Lm |
11144 Lm |
9959 Lm |
Number of High Output LEDs |
2x 8 LED |
2x 8 LED |
2x 8 LED |
Power Consumption |
208 Watts |
176 Watts |
192 Watts |
Current Draw (at 14.4V) |
14.4 Amps |
12.2 Amps |
13.4 Amps |
CERTIFICATION |
|
|
|
High Beam |
ECE R112 |
ECE R112 |
ECE R112 |
E-Mark Ref |
N/A (2x 25 – E-Mark Mode) |
N/A (2x 12.5 – E-Mark Mode) |
17.5 |
Position Light (White only)
|
N/A |
ECE R7 |
N/A |
PHOTOMETRIC DATA |
|
|
|
Horizontal Beam Angle |
42o |
19o |
28o |
0.25 lx Line |
1920m |
1732m |
1111m |
0.5 lx Line |
1358m |
1225m |
786m |
1 lx Line |
960m |
866m |
555m |
3 lx Line |
Lazer Lights – Isuzu D-Max Sports Bar Mounting Kit.
|
