FRONT RUNNER – ISUZU KB DC (2013-CURRENT) WOLF PACK DRAWER KIT

Storing, organizing, and moving gear in Isuzu KB’s just got easier.

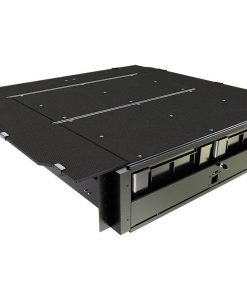

This Wolf Pack based lockable drawer system provides a comprehensive and practical vehicle based storage solution. The removable Wolf Pack boxes simplify the organizing and transporting of stored items between the vehicle and the campsite, garage, store, etc. Designed specifically to fit the contours of the Isuzu KB’s. Engineered tough for both on and off-road conditions.

Info:

This removable box drawer kit includes 1 drawer slide, 6 Front Runner Wolf Packs, locks and keys, 3 tie down rails, 6 tie down rings, deck completion set, face completion set, brackets, all necessary installation hardware, and detailed fitment instructions.

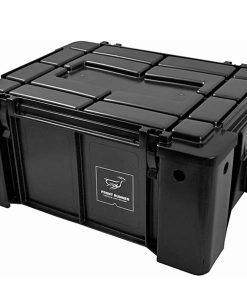

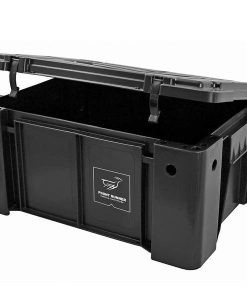

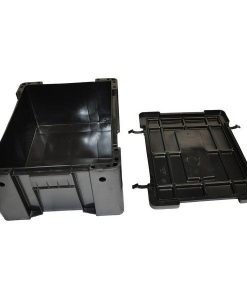

Front Runner Wolf Packs, the heart of this modular storage system, are perfectly sized for kitchen support, dried goods, tools, camera gear, toiletries, even clothes.

• These clip-to-close, stackable and durable Wolf Pack storage containers are made from black, high strength plastic and have integrated grips for easy carrying.
• This Front Runner Removable Box Drawer Kit can be easily installed in minutes by attaching the supplied C-hooks and turnbuckles to the vehicle’s existing mounting points. Removing the drawer is just as easy.
• Insert Flat Pack in the Flat Pack as an adjustable compartment padded liner to further protect camera gear, kitchenware and other fragile items. (Flat Pack sold separately).
• 113kg / 250 lb per drawer load carrying capacity.
• Hold open feature: drawer “locks” open while parked on uneven surfaces.
• High-strength bearing slides allows the drawer to extend nearly 100% from the anchored base.
• The push-to-latch mechanism is lockable. Keys included.
• Provide peace of mind and security by locking away important support gear.
• The flat deck incorporates three cargo attachment channels and 6 Black Tie Down Rings.
• Customize your own storage configurations. Stack and secure luggage, Wolf Pack, Cub Pack, aluminum boxes and other storage containers to the top deck using Stratchits or other straps.
• The deck above the drawer can also be used to mount Front Runner Cargo / Fridge Slides.
• The left side Faceplate has 4 pre-cut knock-outs for adding electrical panel socket inserts. The right side faceplate has 2 pre-cut knock-outs for water fittings such as the Stainless Steel Water Tank for Pickup Drawer System / 52l (sold separately).
• The side and rear decks are easily removable creating storage space between the drawers and vehicle for a variety of items such as tools, jumper cables, tow ropes, diving snorkels, masks, fins, kindling, barbeque skewers, etc.
• The deck is lined with a durable, UV resistant nylon pile carpet.
• The nylon carpet surface creates resiliency for securing cargo while insulating against noise and vibration.
• The drawer is finished with the same durable black powder coating as the Front Runner Slimline II Roof Rack and other Front Runner products.
• This storage system is designed for interior use or in a pick-up load bed with a canopy, camper shell, or other style bed / load bed cover.

All Front Runner Storage Systems are backed by a 2 year warranty.

Specs:

Consists of:

• 1 x Base Drawer unit (SSWO008)
• 1 x Push to close latch with 2 keys
• 3 x Accessory Channels
• 6 x Tie Down Rings
• 6 x Low Lid Wolf Packs
• 1 x Isuzu Deck set
• 1 x Drawer System Wing set
• Installation hardware
• Fitting Instruction

Materials used:

• Aluminum – Accessory Channels & Sub Frame
• Black powder coated steel – Frame
• Carpet & Laminated plywood – Top Deck & Deck Set

Product Dimensions:

• Overall Dimensions:
  • 1455mm (57.3″) L x 1590mm (62.6″) W x 310mm (12.2″) H
• Outer Drawer Dimensions:
  • 1083mm (42.6″) W x 1252mm (49.3″) D x 310mm (12.2″) H
• Inner Drawer Dimensions:
  • 1197mm (47.1″) L x 1031mm (40.6″) W x 230mm (9.1″) H
• Open Drawer Dimensions:
  • 2163mm (85.2″) L x 1083mm (42.6″) W x 310mm (12.2″) H

Weight:

• 81.2KG (179.0lbs)

Load Rating:

• 113Kg (250lbs)

Special Notes:

• Items can be secured to the top deck using the 6 supplied Tie Down Rings and fitting them accordingly to the 3 accessory channels on the top deck.
• Drawer has a hold open feature.
