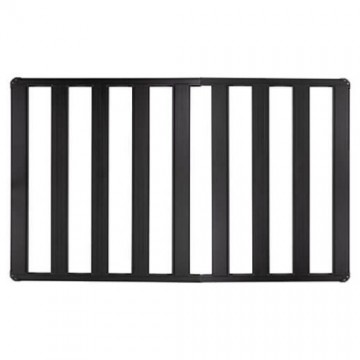

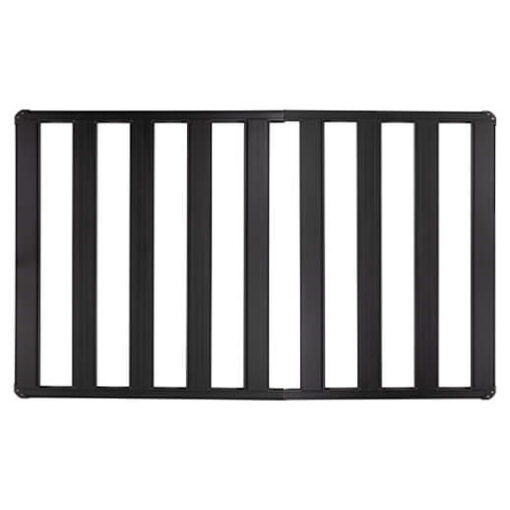

ARB – BASE Rack Platform Modular / 2415x1445mm
€ 1.731,12
(inclusief btw 21%)
Levertijd 3 Werkdagen / Aanvraag
Specificaties
Productcode leverancier
ARB-1770120
Bruto gewicht
31,00 Kg
Omschrijving
ARB – BASE Rack Platform Modular / 2415x1445mm.
ARB – BASE Rack Platform Modular / 2415x1445mm
Introducing the next phase in roof rack evolution, the ARB BASE Rack. Ultra-sleek, boasting a low mounting profile and lightweight design, the ARB BASE Rack incorporates a unique dovetail accessory mounting system that makes attaching and removing accessories easier, faster and more secure. When developing ARB’s BASE Rack one of the requirements of our engineering team was to have a complete roof rack system – racks, mounts, guard rails and equally important, a wide range of BASE Rack accessories. The dovetail attachment point of the BASE Rack provides a number of advantages to traditional accessory fitment on racks including:
- Accessories can be fitted anywhere on the dovetail feature either on the perimeter of the rack or on the front or rear of each cross beam. No need to slide along a t-slot with defined entry and exit points.
- Easy clean dovetail surface does not accumulate dirt and debris.
- Minimal tools required for fitment of BASE Rack accessories which greatly adds to the modular nature of the rack. Accessories can be quickly and easily removed when not required if there are height restrictions. For example, for low garage entry or an underground car park, and then refitted on the weekend for camping trips.
- Integrated channel within the BASE Rack structure for wiring of auxiliary lighting, solar panels or antennas.
FEATURES
- Constructed from extruded aluminium beams featuring rigid internal bracing
- Fully welded construction (excluding corner caps)
- BASE Racks for vans come in 2-pieces ready to fit to mount brackets (sold separately)
- Integrit textured black powder-coat finish
- Strength through design requires no additional cross bars
- Dovetail accessory attachment design allows easy to install one handed attachment for various accessories
- Provision for easy running of wiring within the BASE Rack assembly
Rack Assembly
- Fully welded construction (excluding corner caps)
- ARB now offers a two-piece BASE Rack Van application. BASE Rack is now suited to a range of lifestyle and trade vans, with an extensive range of ARB accessories to suit your lifestyle.
- Controlled welds to ensure that the height of the weld doesn’t impede on loading and unloading of the rack
Rack Beams
- Common extruded aluminium cross beams
- Box piece beam with internal bracing for added strength and rigidity
- Dovetail on both front and rear of each cross beam allowing for greater flexibility for the location of accessory fitment
- Beams run perpendicular to the vehicle to greatly assist in strength of the rack and ease of loading and unloading of longer items
Rack Longitudinal Side Beams
- Specific extruded longitudinal side beams features provision for running wiring within the beam through provided blanking plugs
- Internal bracing greatly adds to strength without added external dimensions
- Dovetail on exterior edge only
Rack Corner Caps
- Die-cast, UV resistant aluminium corner caps
- Bottom section is plastic to enable easy drilling for running of wiring
SPECIFICATIONS
- It is recommended that either the optional wind deflector manufactured from powder-coated press formed 1.6mm aluminium or ARB Roof Rack LED light bar is fitted below the front beam to reduce wind noise
- ARB Roof Rack LED light bar PN 1780500 either in conjunction with the deflector or light bar can be mounted in place of the deflector below the front beam
- Maximum load per BASE Rack beam is 25kg. Net Payload of the rack is dependent on vehicle specifications. Loads must be evenly distributed and adequately secured
- Required tools for fitment: 10mm spanner x 1, 13mm spanner x 1, hex key (supplied in kit), tape measure
Note – Please be aware that with speeds over 50mph you may hear air noise, which will come from rack area. Due to this we strongly recommend to use ARB LED bar, which is designed to decrease noise.
VEHICLE FITMENTS
| VEHICLE MAKE/MODEL/SERIES | FITMENT | 1,225 MM X 1,155 MM | 1,255 MM X 1,285 MM | 1,545 MM X 1,285 MM | 1,545MM X 1,445MM | 1,835 MM X 1,155 MM | 1,835 MM X 1,285 MM | 1,835MM X 1,445MM | 2,125 MM X 1,285 MM | 2,125MM X 1,445MM | 2,415MM X 1,445MM | 2,705MM X 1,445MM | 2,995MM X 1,445MM | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Toyota LandCruiser 200 Series | Cabin | – | – | ☑ | – | ☑ | ☑ | – | ☑ | – | – | – | – | ||||||||||||||
| Toyota LandCruiser 100 Series | Cabin | – | – | – | – | – | ☑ | – | – | – | – | – | – | ||||||||||||||
| Toyota LandCruiser 80 Series | Cabin | – | ☑ | ☑ | – | – | ☑ | – | ☑ | – | – | – | – | ||||||||||||||
| Toyota LandCruiser 76 Series | Cabin | – | ☑ | ☑ | – | – | ☑ | – | ☑ | – | – | – | – | ||||||||||||||
| Toyota LandCruiser 75/78 Series | Cabin | – | ☑ | ☑ | – | – | ☑ | – | ☑ | – | – | – | – | ||||||||||||||
| Toyota LandCruiser 79 Series Dual Cab | Cabin | – | ☑ | ☑ | – | – | – | – | – | – | – | – | – | ||||||||||||||
| Toyota LandCruiser 60 Series (not Hi-Roof) | Cabin | – | ☑ | ☑ | – | – | ☑ | – | ☑ | – | – | – | – | ||||||||||||||
| Toyota LandCruiser Prado 150 LWB | Cabin | – | – | – | – | ☑ | ☑ | – | – | – | – | – | – | ||||||||||||||
| Toyota LandCruiser Prado 120 LWB | Cabin | – | – | – | – | ☑ | ☑ | – | – | – | – | – | – | ||||||||||||||
| Toyota LandCruiser Prado 90 LWB | Cabin | – | ☑ | ☑ | – | – | ☑ | – | ☑ | – | – | – | – | ||||||||||||||
| Toyota FJ Cruiser | Cabin | – | ☑ | ☑ | – | – | – | – | – | – | – | – | – | ||||||||||||||
| Toyota HiLux Dual Cab (2015 on) | ARB Canopy | – | – | ☑ | – | ☑ | ☑ | – | – | – | – | – | – | ||||||||||||||
| Toyota HiLux Dual Cab (2015 on) | Cabin | ☑ | ☑ | – | – | – | – | – | – | – | – | – | – | ||||||||||||||
| Toyota HiLux Dual Cab (1997-2015) | Cabin | ☑ | ☑ | – | – | – | – | – | – | – | – | – | – | ||||||||||||||
| Nissan Patrol MQ, GQ, GU* | Cabin | – | ☑ | ☑ | – | – | ☑ | – | ☑ | – | – | – | – | ||||||||||||||
| Nissan Patrol Y62 (all Series) | Cabin | – | ☑ | ☑ | – | – | – | – | – | – | – | – | – | ||||||||||||||
| Nissan Navara NP300 – Dual Cab (2015 on) | ARB Canopy | – | – | ☑ | – | ☑ | ☑ | – | – | – | – | – | – | ||||||||||||||
| Ford Ranger PX, PXII, PXIII – Dual Cab (2011 on) | ARB Canopy | – | – | ☑ | – | ☑ | ☑ | – | – | – | – | – | – | ||||||||||||||
| Ford Ranger PX, PXII, PXIII – Dual Cab (2011 on) | Cabin | ☑ | ☑ | – | – | – | – | – | – | – | – | – | – | ||||||||||||||
| Ford Maverick* | Cabin | – | ☑ | ☑ | – | – | ☑ | – | ☑ | – | – | – | – | ||||||||||||||
| Mazda BT-50 UP, UR, RG04 – Dual Cab (2011 – 2020) | ARB Canopy | – | – | ☑ | – | ☑ | ☑ | – | – | – | – | – | – | ||||||||||||||
| Mazda BT-50 UP, UR, RG04 – Dual Cab (2011 – 2020) | Cabin | ☑ | ☑ | – | – | – | – | – | – | – | – | – | – | ||||||||||||||
| Mitsubishi Triton MQ & MR Dual Cab (2015 on) | ARB Canopy | – | – | ☑ | – | ☑ | ☑ | – | – | – | – | – | – | ||||||||||||||
| Mitsubishi Pajero NH, NJ, NL (mid 1991 – 2000) | Cabin | – | ☑ | ☑ | – | – | ☑ | – | ☑ | – | – | – | – | ||||||||||||||
| Mitsubishi Triton MJ (to 10/1996) | Cabin | ☑ | ☑ | – | – | – | – | – | – | – | – | – | – | ||||||||||||||
| Holden Colorado RG – Dual Cab (2012 on) | ARB Canopy | – | – | ☑ | – | ☑ | ☑ | – | – | – | – | – | – | ||||||||||||||
| Isuzu D-Max Dual Cab (2021 on) | Cabin | ☑ | ☑ | – | – | – | – | – | – | – | – | – | – | ||||||||||||||
| Isuzu D-Max Dual Cab (2012 – 2020) | ARB Canopy | – | – | ☑ | – | ☑ | ☑ | – | – | – | – | – | – | ||||||||||||||
| Mercedes X-Class (2018-2020) | ARB Canopy | – | – | ☑ | – | ☑ | ☑ | – | – | – | – | – | – | ||||||||||||||
| Volkswagen Amarok Dual Cab (2010 on) | ARB Canopy | – | – | ☑ | – | ☑ | ☑ | – | – | – | – | – | – | ||||||||||||||
| Jeep Wrangler JL (2020 on) | Cabin | – | – | ☑ | – | – | ☑ | – | – | – | – | – | – | ||||||||||||||
| Jeep Cherokee XJ (1983 – 2001) | Cabin | ☑ | ☑ | ☑ | – | ☑ | – | – | – | – | – | – | – | ||||||||||||||
| Landrover Defender (all models) | Cabin | – | ☑ | ☑ | – | – | ☑ | – | ☑ | – | – | – | – | ||||||||||||||
| Landrover Range Rover Classic 2 & 4 Door (1969 – 1996) | Cabin | – | ☑ | ☑ | – | – | ☑ | – | ☑ | – | – | – | – | ||||||||||||||
| Suzuki Jimny (2019 on) | Cabin | – | ☑ | ☑ | – | – | – | – | – | – | – | – | – | ||||||||||||||
| Mercedes Benz Sprinter (2006 on) | Cabin | – | – | – | ☑ | – | – | – | – | ☑ | – | – | ☑ | ||||||||||||||
| Volkswagen Transporter | Cabin | – | – | – | – | – | – | – | – | ☑ | – | ☑ | ☑ | ||||||||||||||
| Toyota HiAce (2019 on) | Cabin | – | – | – | – | – | – | – | – | ☑ | – | – | ☑ | ||||||||||||||
| Ford Transit Custom/Tourneo (2013 on) | Cabin | – | – | – | – | – | – | ☑ | – | ☑ | – | ☑ | ☑ | ||||||||||||||
| Volkswagen Crafter (2017 on) | Cabin | – | – | – | ☑ | – | – | – | ☑ | ☑ | – | – | ☑ | ||||||||||||||
| Ford Transit (2013 on) | Cabin | – | – | – | – | – | – | – | – | ☑ | – | ☑ | – | ||||||||||||||
| *Note: not all rack lengths will suit all models |
